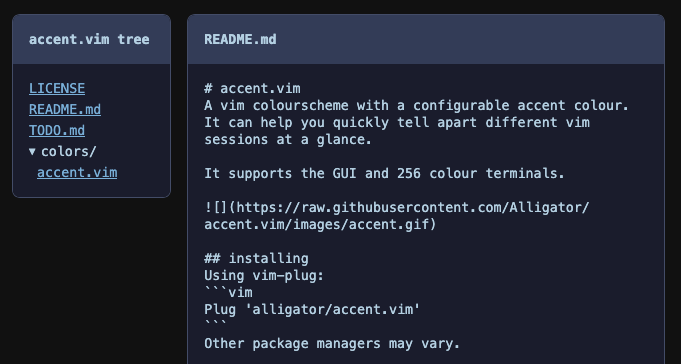

I wrote a git tree visualiser in AWK. Here it is showing the tree for accent.vim, my vim coloursceheme:

You can try it here.

The source code is here.

It generates a single static HTML file. The file tree is on the left, the file content is on the right. Clicking on a file will show its content.

I learned some interesting things about AWK and HTML by writing this, but first.

Why?

For fun, and because I like AWK. It's minimal, it's everywhere, it's older than me (and probably you). Writing programs in AWK is like being a beginner again; you have a limited set of tools and you have to find new ways to solve problems with them.

Here are some things I learned about AWK.

Multidimensional Arrays

I store a type (blob or tree) and a path for each file in the repo. In another language I'd keep a list of objects:

[
  { type: "blob", path: "README.md" },
  { type: "tree", path: "src" },
  { type: "blob", path: "src/main.go" },
]

But AWK only has one collection type, the associative array. POSIX AWK doesn't support nested arrays either. Unless I want to reply on GNU AWK (I don't), I can't do this:

files[i]["type"] = type
files[i]["path"] = path

You can use comma separated indexes though:

files[i,"type"] = type
files[i,"path"] = path

This creates an index by joining all the expressions together with SUBSEP. On my system AWK (nawk) SUBSEP is 28, or the ASCII file separator character

This does make the array longer than the number of files since there's two entries per file. I store the number of files in a separate variable instead.

nawk doesn't like 0 bytes in strings

When a file is binary, I show "binary file" instead of it's content. I decided on a very rough heuristic for this: if there's a 0 byte in the first 100 bytes of a file, it's binary. My plan was to read a few lines with getline and call index() to check for a 0 byte:

if (index(line, "\0") > 0) {
  # file is binary
}

But this call to index always returned 1, and every file was considered binary. Here's a small program that hints at why:

$ awk 'BEGIN {
  print "one two\0three"
  print index("one\0two", "\0")
  print length("\0")
}'
one two
1
0

nawk will parse \0 in a string and insert a 0 byte, but also treats it as a string terminator! This is very confusing if you're not expecting it.

My index call always returned 1 because it's actually checking this:

index(line, "")

And now a digression about AWK version differences.

I tried this across a few AWKs:

Note that index returns 1 for the first character in the string.

GNU AWK, mawk and GoAWK get it right, nawk and busybox AWK don't.

The same null-termination problem happens when you read data from files, stdin, or via getline. mawk will truncate the string. The well behaved AWKs all read the whole string with the zero byte in it. Busybox AWK is weird. If I create a file with this content:

one\0two

Then use it as the input file, this happens:

$ busybox awk '{ print $0 }' zerosep.txt
one
two

The zero byte was treated as a record separator, apparently.

Anyway, I couldn't find a way to check a string for a null byte in nawk, so instead I use od to dump the bytes and check for 00:

function is_binary(name) {
  while (("od -N 100 -v -t x1 -A n " name | getline l) > 0) {
    if (index(l, "00") > 0) {
      return 1
    }
  }
  return 0
}

getline and close() are weird

To measure how long the program takes, I store timestamps and calculate the difference. I first did this:

"date +%s" | getline start_ts
# ... rest of program
"date +%s" | getline end_ts
diff_ts = end_ts - start_ts

But end_ts was always empty, unless I commented out the start_ts line. Printing the result of getline gives us some clues why:

$ awk 'BEGIN {
  print ("date +%s" | getline start_ts)
  print ("date +%s" | getline end_ts)
}'
1
0

1 means success, 0 means end of file.

The first getline executes date and sets up a pipe, the next getline is reading from the same pipe. The date command is finished after one line, so there's no more output.

That seems obvious in retrospect, but it wasn't at all at the time.

To close the pipe and run a new command, you have to call close(), with the literal string you used in the first call. So to fix my bug, I call close("date +%s") after getting each timestamp.

I mean the literal string too, whitespace differences will run a new command:

$ awk 'BEGIN {
  "date" | getline date1
  " date" | getline date2
  print date1
  print date2
}'
Wed 23 Sep 2026 14:35:44 BST
Wed 23 Sep 2026 14:35:44 BST

Here are some things I learned about HTML and CSS by making the page interactive with no JavaScript.

The <details> element

I already knew about the <details> element, but it's an excellent addition to HTML and I want to remind you it exists. It creates an expandable section with a label (set by the <summary> tag).

I used it to create directories which can be expanded and collapsed:

The docs directory collapsed and expanded.

The :target pseudo-class

When a file is selected on the left, I show the file's content on the right. How do we do that without JavaScript? First, each file is rendered as a <section> element with an id taken from its index in the file array:

<section id="file-0">
  <h2>.gitignore</h2>
  <pre>
    *.json
    build/
  </pre>
</section>

Then I hide them all with this CSS:

.content > section {
  display: none;
}

Showing the selected file involves, two parts. The files in the tree are anchor links with an id that matches the relevant section:

<a href="#file-0">.gitignore</a>
<a href="#file-1">LICENSE</a>
<a href="#file-2">README.md</a>

This is the magic CSS to un-hide the file content:

.content > section:target {
  display: block;
}

The :target pseudo class selects the element the URL fragment points to. If the URL is repo.html#file-1, the section with the id file-1 becomes the target and is un-hidden.

That's it. If you've never tried writing more than a one-liner in AWK I recommend it. It's familiar, but odd.

Should you use it?

Probably not.
